Erba EC-90 Electrolyte Analyzer In Raipur

Description

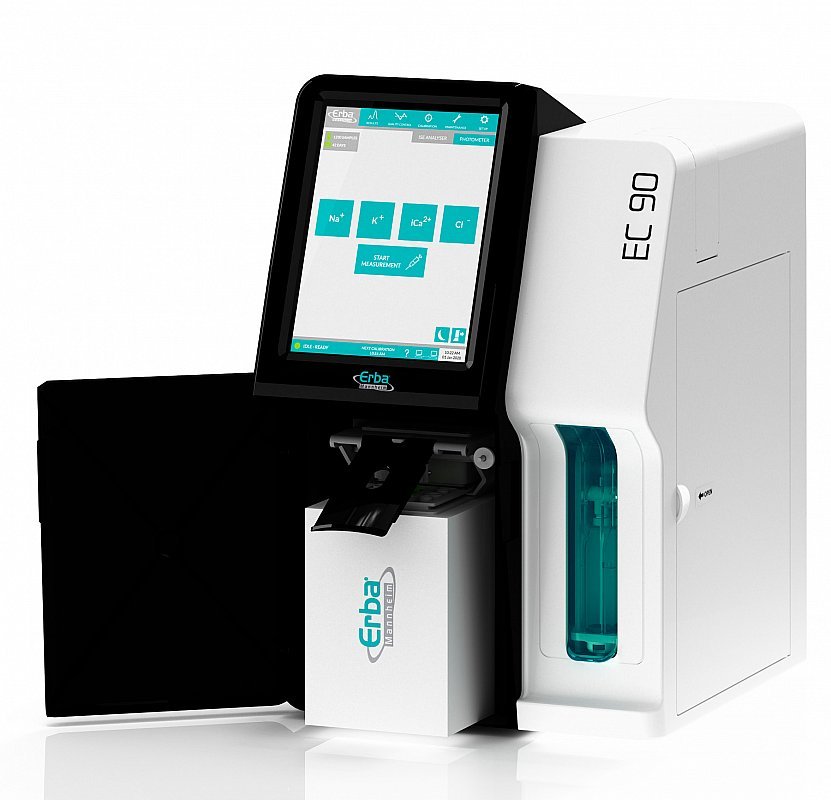

ERBA EC 90 Electrolyte Analyzer – Advanced ISE Analyzer for Fast & Accurate Electrolyte Testing

The ERBA EC 90 Electrolyte Analyzer is a modern electrolyte testing system engineered to provide fast, precise, and cost-effective analysis for clinical laboratories. Built with advanced solid-state Ion Selective Electrode (ISE) technology, the EC 90 delivers reliable electrolyte measurements while maintaining low operating and maintenance costs.

Designed for convenience and efficiency, this next-generation analyzer combines intelligent automation, user-friendly software, and high analytical performance, making it suitable for hospitals, diagnostic centers, and pathology laboratories.

Key Features of ERBA EC 90 Electrolyte Analyzer

Innovative Solid-State ISE Technology

The EC 90 uses advanced electrochemical biosensor technology for accurate direct measurement of:

• Sodium (Na+)
• Potassium (K+)
• Chloride (Cl-)
• Ionized Calcium (iCa)

This technology ensures stable performance and dependable results for routine electrolyte testing.

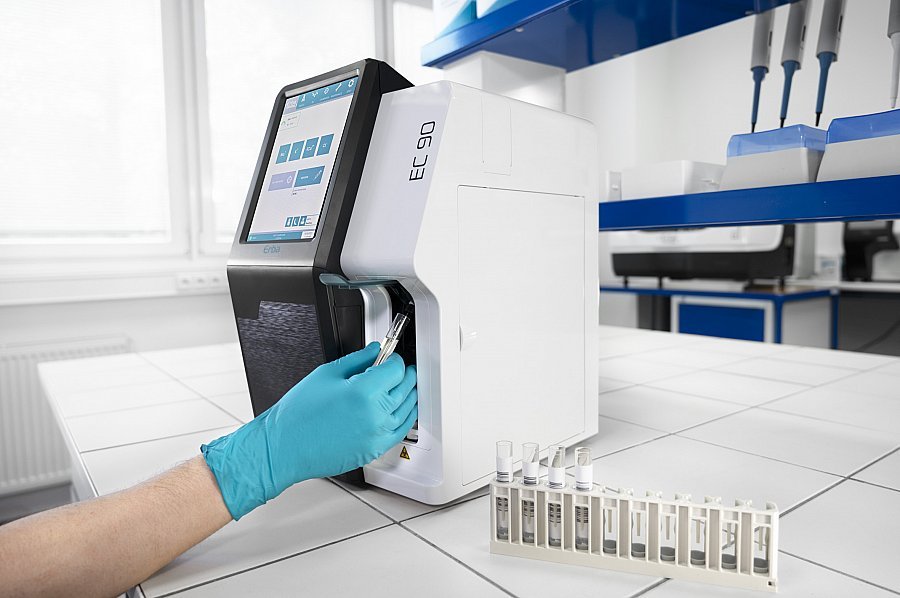

Simple One-Click Operation

The analyzer is designed for easy daily use with:

• One-click sample measurement
• Quick cartridge installation

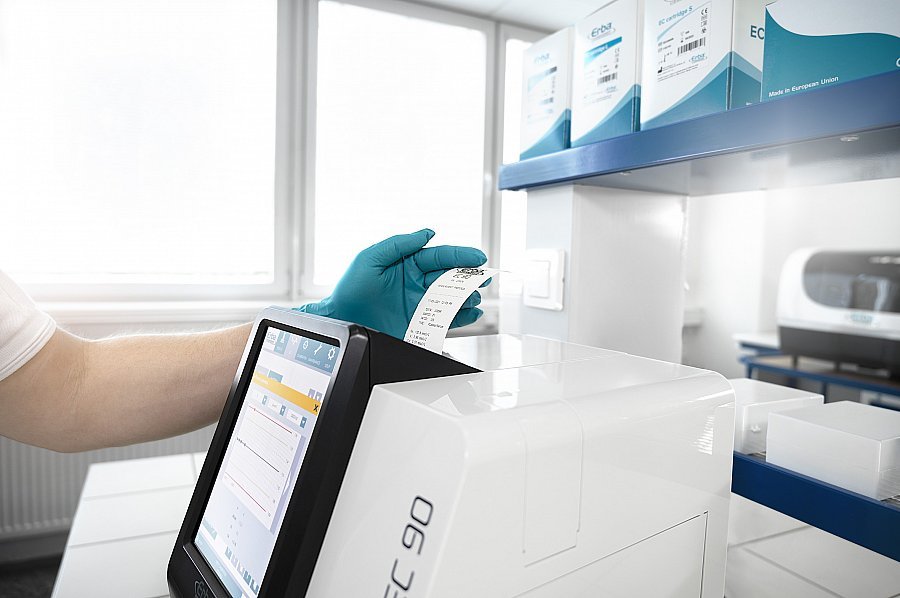

• Instant result printing via built-in thermal printer

Its intuitive workflow minimizes training requirements and improves laboratory efficiency.

High Precision and Reliable Results

The ERBA EC 90 delivers excellent analytical performance with:

• Precision below 1% CV
• Automatic calibration system
• Integrated reference sensor
• Extended linearity beyond clinical requirements

These features help ensure consistent and accurate electrolyte analysis.

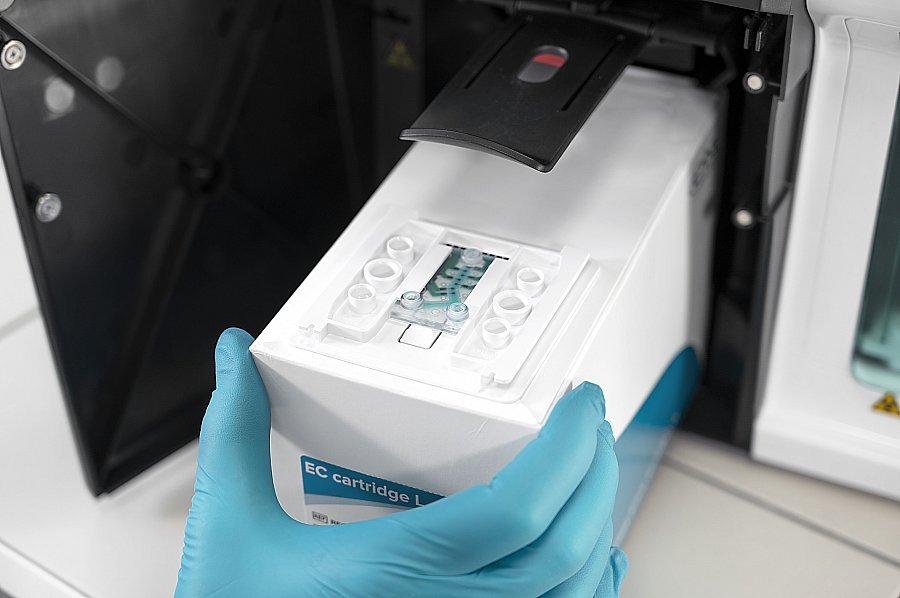

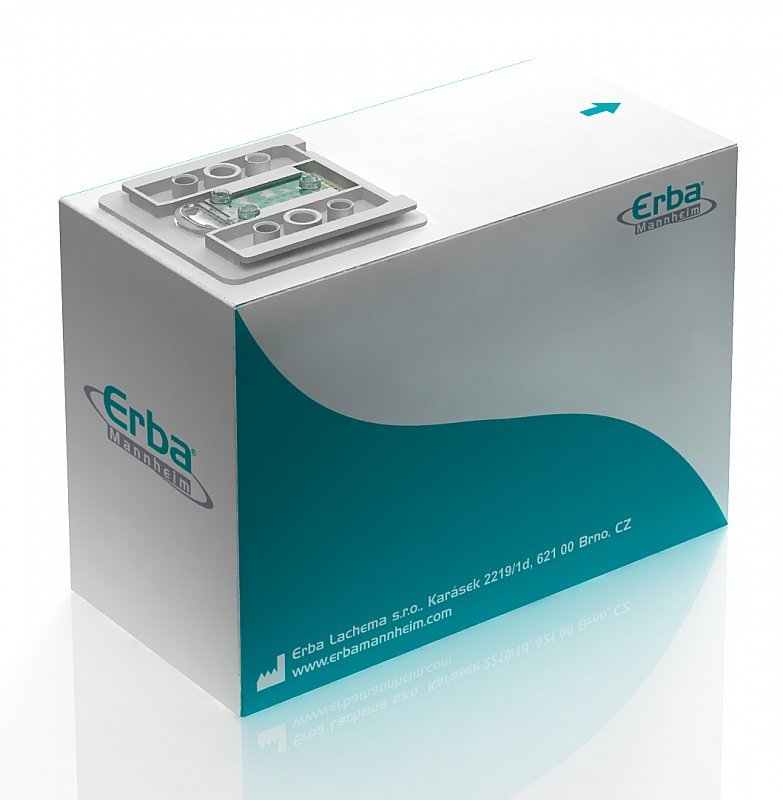

Maintenance-Free Cartridge System

The analyzer uses a convenient plug-and-play cartridge system that combines:

• Biosensor
• Reagent pack
• Consumable components

Cartridges remain functional for up to 90 days after installation, helping laboratories reduce downtime and maintenance efforts.

Fast Analysis with Low Sample Volume

• Sample volume options: 35 µL and ≥70 µL
• Analysis time: 35 seconds
• Throughput capacity: Up to 100 samples per hour

This makes the EC 90 ideal for both routine and emergency laboratory testing.

Advanced Quality Control & Data Management

The integrated software supports:

• Quality control monitoring
• Levey-Jennings charts
• Westgard rules
• Programmable reference ranges
• Advanced result flagging
• Bi-directional LIS connectivity

Large Touchscreen Interface

An 8.5-inch color touchscreen with a clean software layout provides easy access to:

• Patient reports
• QC records
• Calibration data
• System settings

Technical Specifications

Display & User Interface

• 8.5-inch color touchscreen
• 600 × 800 pixel graphic display

Measured Parameters

• Sodium (Na+)
• Potassium (K+)
• Chloride (Cl-)
• Ionized Calcium (Ca++)

Sample Types

• Whole blood
• Serum
• Plasma
• Diluted urine
• Aqueous solutions

Sample & Performance Details

• Sample volume: 35 µL and ≥70 µL modes
• Throughput: 100 samples/hour
• Analysis time: 35 seconds

Calibration Features

• Automatic 1-point calibration with every sample or on demand
• Automatic 2-point calibration every 12 hours or manually initiated

Connectivity Options

• 2 USB ports
• RS-232
• LAN support
• Optional barcode scanner compatibility

Data Storage

• Capacity for up to 10,000 sample records

Physical Specifications

• Dimensions: 337 mm × 273 mm × 422 mm
• Weight: Less than 8 kg

Operating Conditions

• Temperature range: 15–35°C
• Humidity range: 15–90%

Optional Accessories

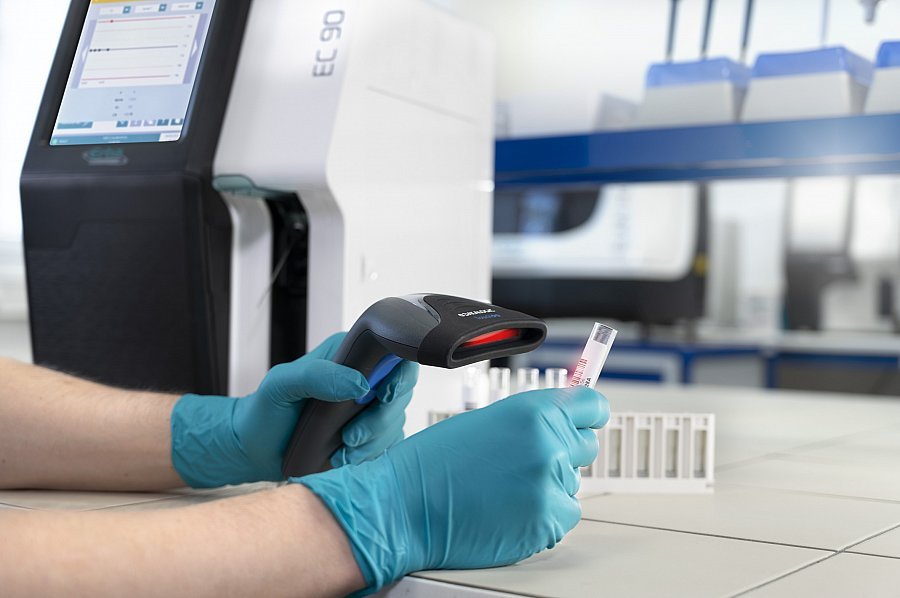

• Barcode scanner for sample and patient identification
• Auto sampler (optional)

Why Choose ERBA EC 90 Electrolyte Analyzer?

The ERBA EC 90 Electrolyte Analyzer offers an ideal combination of accuracy, speed, ease of use, and affordability. Its advanced ISE technology, low maintenance cartridge system, and intelligent software make it a reliable solution for laboratories seeking efficient electrolyte testing with consistent analytical performance and optimized operational costs.
