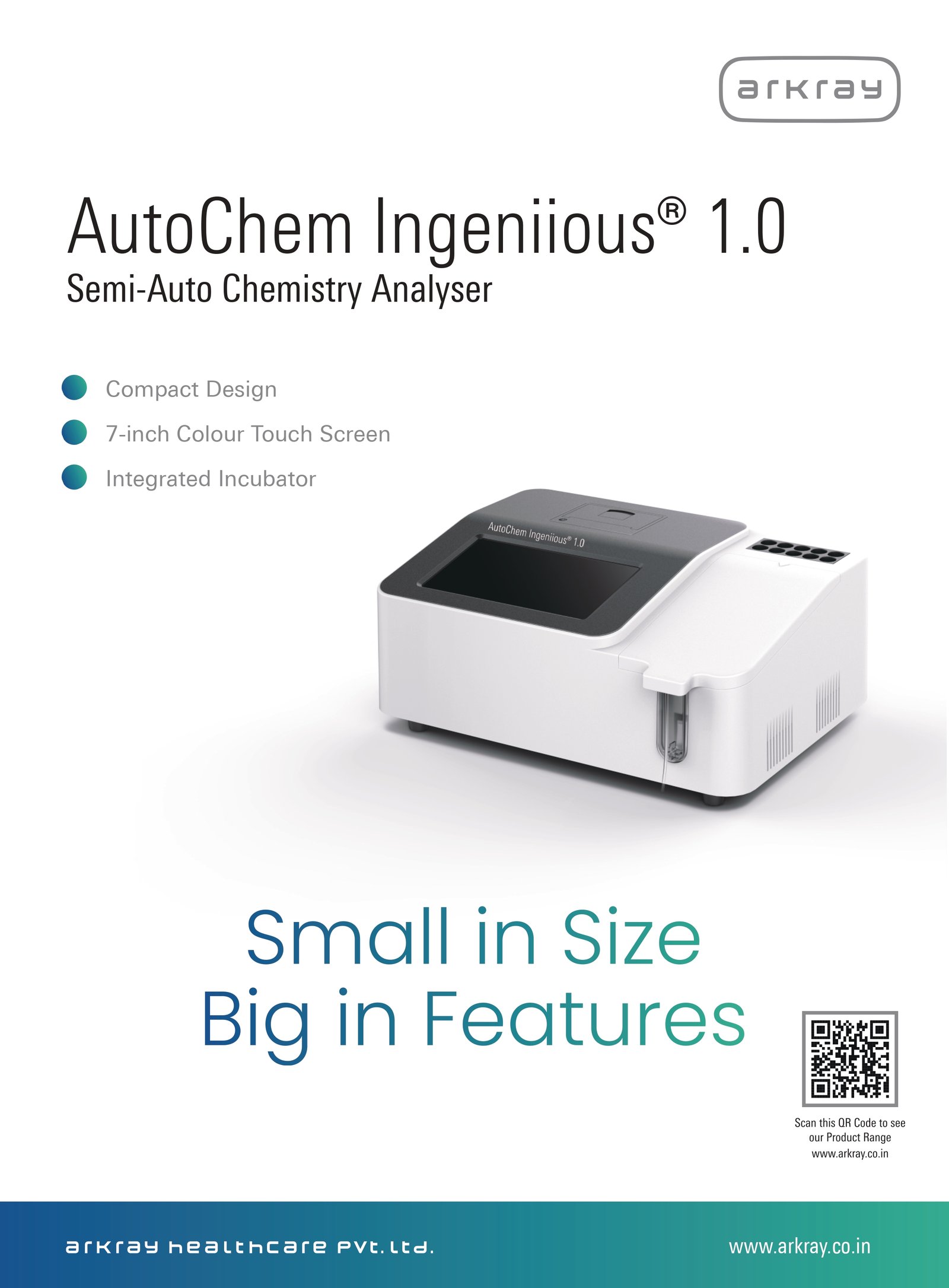

ARKRAY Autochem Ingeniious 1.0 in Raipur

Description

The ARKRAY AutoChem Ingenious 1.0 is a compact and advanced semi-automatic biochemistry analyzer designed to deliver accurate, reliable, and efficient clinical chemistry testing for diagnostic laboratories. With its modern touchscreen interface, integrated incubation system, and intelligent quality control features, this analyzer is an ideal solution for small to medium-sized laboratories seeking dependable performance at an affordable cost.

Built for ease of operation and precision testing, the AutoChem Ingenious 1.0 supports a wide range of biochemistry applications while optimizing laboratory workflow and reducing manual effort.

Key Features of ARKRAY AutoChem Ingenious 1.0

Compact and User-Friendly Design

The analyzer features a space-saving design combined with a large 7-inch color touchscreen, making daily operation simple and convenient.

Integrated Peltier-Controlled Incubator

An in-built incubation compartment with Peltier temperature regulation ensures stable reaction conditions for improved analytical accuracy.

Dual Cuvette System

Supports both:

• Flow cell mode
• Standard square cuvette mode

This provides flexibility for different laboratory testing requirements.

Advanced Calibration Options

The analyzer supports:

• Single-point calibration
• Multi-point calibration
• Linear and non-linear calibration methods

This flexibility ensures accurate test performance across multiple assay types.

Real-Time Reaction Curve Monitoring

Continuous monitoring of reaction curves helps improve test reliability and quality control.

Intelligent Lamp Saver Mode

Programmable lamp-saving functionality helps extend lamp life and reduce maintenance costs.

Built-In Quality Control Management

Includes colorful Levy-Jennings quality control graphs for effective monitoring of analytical performance.

USB Connectivity

Supports external:

• Mouse
• Keyboard
• Printer

This improves convenience and data management capabilities.

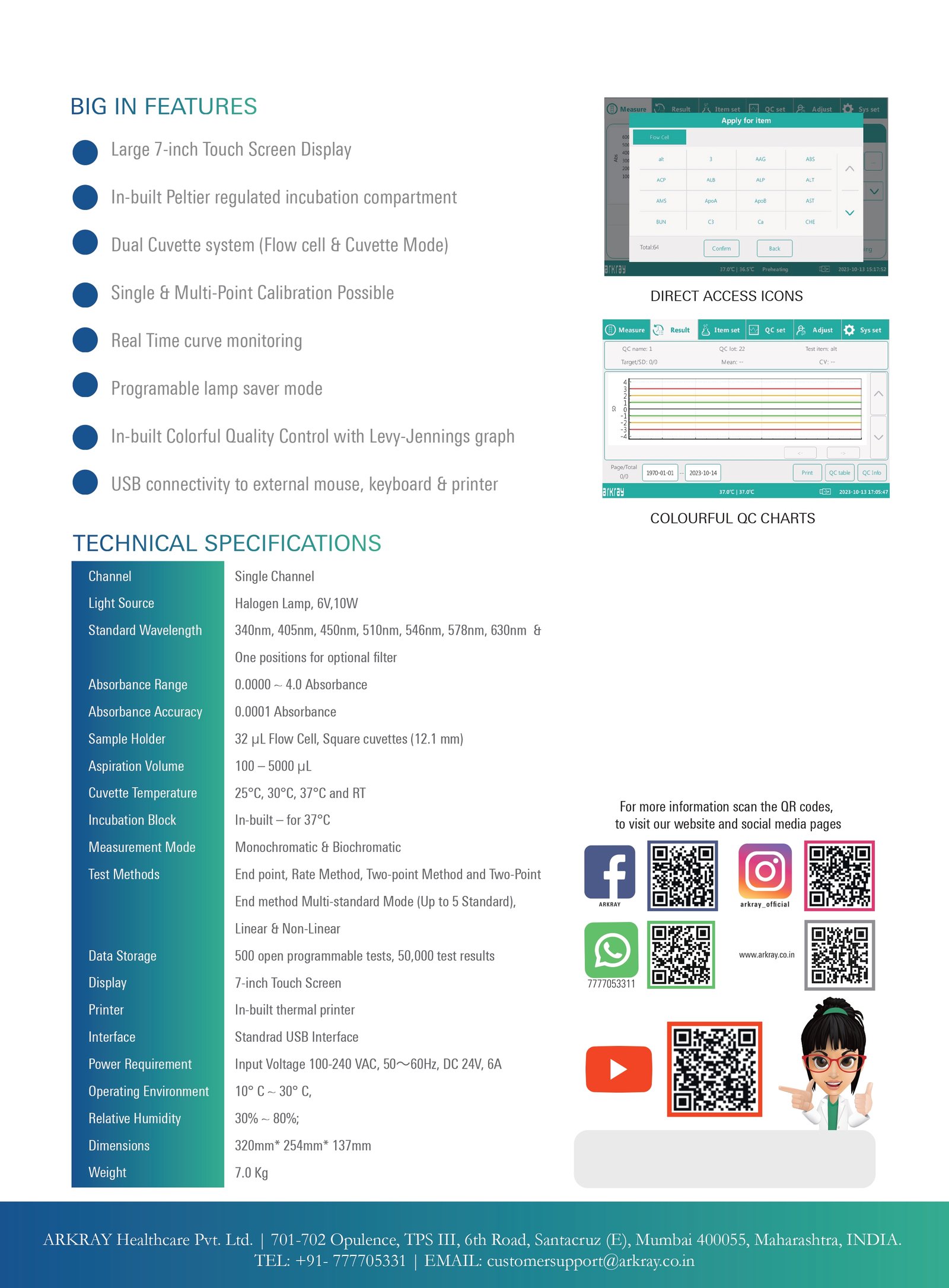

Technical Specifications

Optical System

• Channel: Single channel
• Light Source: Halogen lamp (6V, 10W)
• Standard Wavelengths:
  340 nm, 405 nm, 450 nm, 510 nm, 546 nm, 578 nm, 630 nm
  • one optional filter position

Measurement Performance

• Absorbance Range: 0.0000 – 4.0 Abs
• Absorbance Resolution: 0.0001 Abs
• Measurement Modes: Monochromatic and bichromatic

Sample & Cuvette Details

• Flow Cell Volume: 32 µL
• Sample Volume: 100 – 5000 µL
• Cuvette Types: Flow cell and 12.1 mm square cuvettes

Temperature Settings

• Adjustable temperatures:
  • 25°C
  • 30°C
  • 37°C
  • Room Temperature

Supported Test Methods

• End Point
• Rate Method
• Two-Point Method
• Two-Point End Method
• Multi-Standard Mode (up to 5 standards)

Data Storage

• 500 programmable open tests
• Storage capacity for up to 50,000 test results

Display & Printing

• 7-inch color touchscreen
• Built-in thermal printer

Connectivity

• Standard USB interface

Power Requirements

• Input Voltage: 100–240 VAC
• Frequency: 50–60 Hz
• DC Output: 24V, 6A

Operating Conditions

• Temperature: 10°C – 30°C
• Humidity: 30% – 80%

Physical Specifications

• Dimensions: 320 × 254 × 137 mm
• Weight: Approximately 7 kg

Applications of ARKRAY AutoChem Ingenious 1.0

The analyzer is suitable for:

• Diagnostic laboratories
• Hospital laboratories
• Pathology centers
• Routine biochemistry testing
• Clinical chemistry analysis

Benefits of Choosing ARKRAY AutoChem Ingenious 1.0

• Compact and laboratory-friendly design
• Accurate and reliable chemistry testing
• Easy touchscreen operation
• Flexible calibration and assay modes
• Advanced quality control management
• Low maintenance and efficient workflow
• Cost-effective solution for routine diagnostics

Why Choose ARKRAY AutoChem Ingenious 1.0?

The ARKRAY AutoChem Ingenious 1.0 Semi-Automatic Biochemistry Analyzer combines precision, convenience, and advanced functionality in a compact platform. With its integrated incubator, intelligent QC tools, and flexible testing capabilities, it is an excellent choice for laboratories seeking dependable and affordable clinical chemistry analysis.
